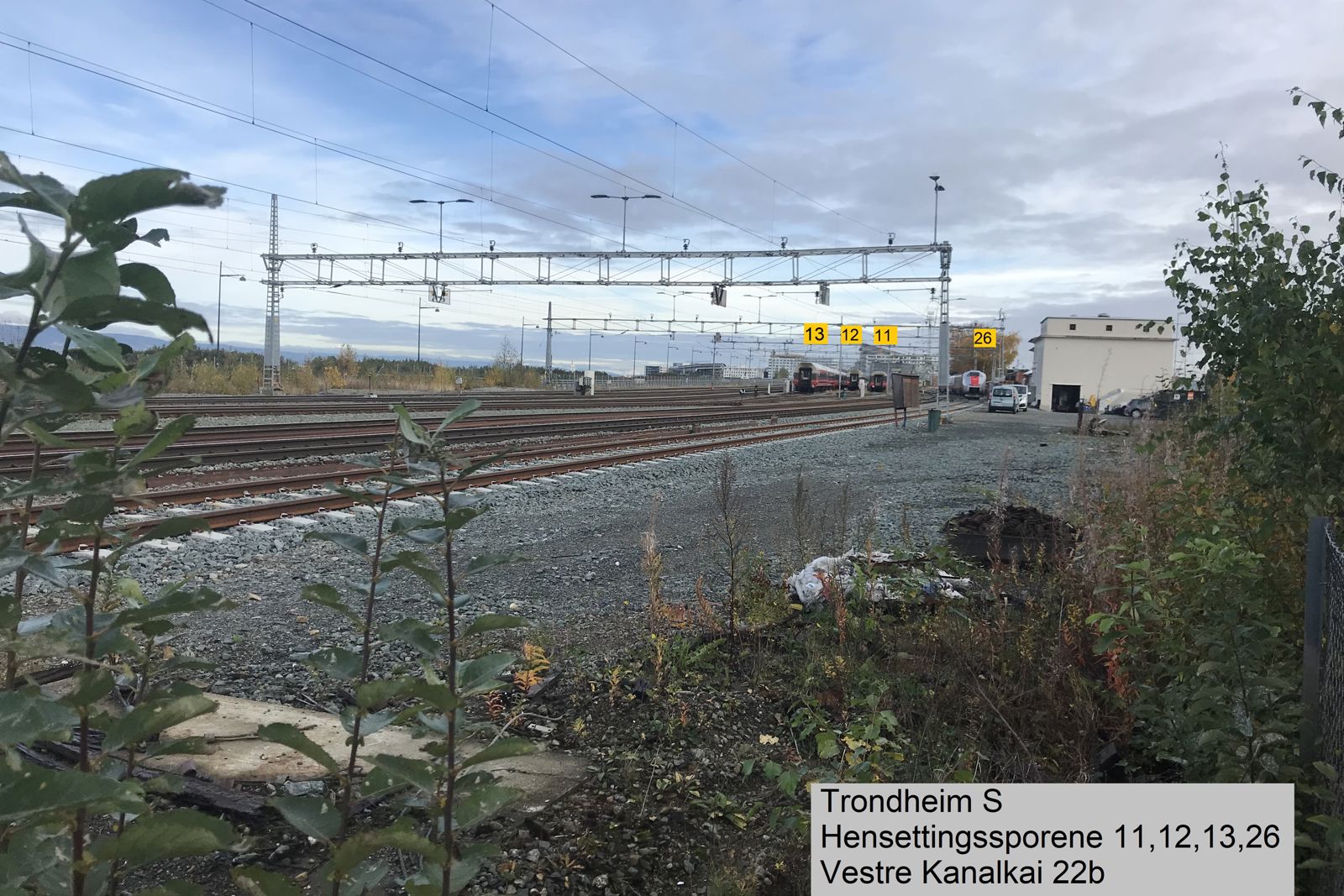

Hvor ligger hensettingsområdet?
Strekning: Oslo S–Trondheim S, Dovrebanen.
Avstand fra Oslo: 552,85 km.
Kontaktinformasjon
Jacob Matheson
Områdeansvarlig Serviceanlegg
Sportabell
| Spor | Plattform | Merknader | ||||||
|---|---|---|---|---|---|---|---|---|
| Navn | Type | Lengde (m) | Kryssingsspor- lengde (m) |
Forlenget (m) | Lengde (m) | Høyde (mm) | Bredde (m) | |
| 1 | Hovedtogspor | 0 | 360 | 115 | 760/741 | 3 | Sideplattform dekker spor 1 og spor 1. | |
| 1 | Buttspor | 40 | 40 | Verkstedspor. | ||||
| 1 | Buttspor | 44 | 44 | Verkstedspor. | ||||
| 1 | Buttspor | 113 | 66 | Hensettingsspor. | ||||
| 1 | Buttspor | 85 | 85 | Verkstedspor. | ||||
| 1 | Togspor | 784 | 413 | |||||
| 1 | Øvrige spor | 81 | Sporsløyfe. | |||||
| 2 | Buttspor | 464 | ||||||
| 2 | Togspor | 572 | 434 | 252 | 760/780 | 8,25 | Mellomplattform dekker spor 2 og 3. | |
| 2 | Hovedtogspor | 0 | 560 | |||||
| 2 | Buttspor | 40 | 40 | Verkstedspor. | ||||
| 2 | Buttspor | 85 | 85 | Verkstedspor. | ||||
| 2 | Buttspor | 44 | 44 | Verkstedspor. | ||||
| 3 | Hovedtogspor | 750 | 439 | DHB 439. | ||||
| 3 | Buttspor | 85 | 85 | Verkstedspor. | ||||
| 3 | Buttspor | 30 | 30 | Verkstedspor. | ||||
| 4 | Buttspor | 30 | 30 | Verkstedspor. | ||||
| 4 | Togspor | 587 | 416 | 252 | 760/780 | 7,80 |
Mellomplattform dekker spor 4 og 5. |
|
| 4 | Buttspor | 50 | 50 | Verkstedspor. | ||||
| 4 | Buttspor | 85 | 85 | Verkstedspor. | ||||
| 5 | Buttspor | 50 | 50 | Verkstedspor. | ||||
| 5 | Buttspor | 45 | 45 | Verkstedspor. | ||||
| 5 | Buttspor | 85 | 85 | Verkstedspor. | ||||
| 5 | Togspor | 722 | 329 | 252 | 760/780 | 7,80 | Mellomplattform dekker spor 5 og 4. | |
| 6 | Buttspor | 50 | 50 | Verkstedspor. | ||||
| 6 | Togspor | 672 | 464 | |||||
| 6 | Buttspor | 45 | 45 | Verkstedspor. | ||||
| 6 | Buttspor | 25 | 25 | Verkstedspor. | ||||
| 7 | Buttspor | 50 | 50 | Verkstedspor. | ||||
| 7 | Buttspor | 25 | 25 | Verkstedspor. | ||||
| 7 | Hovedtogspor | 833 | 718 | DHB 678. | ||||
| 7 | Buttspor | 60 | 60 | Verkstedspor. | ||||
| 7 | Buttspor | 45 | 45 | Verkstedspor. | ||||
| 8 | Buttspor | 60 | 60 | Verkstedspor | ||||
| 8 | Togspor | 640 | 566 | |||||
| 8 | Buttspor | 50 | 50 | Verkstedspor. | ||||
| 8 | Buttspor | 45 | 45 | Verkstedspor. | ||||
| 8 | Buttspor | 25 | 25 | Verkstedspor. | ||||
| 9 | Buttspor | 45 | 45 | Verkstedspor. | ||||
| 9 | Buttspor | 50 | 50 |
Verkstedspor. |
||||
| 9 | Togspor | 1578 | 526 | 110 | 640/600 | 7,80 |
Mellomplattform dekker spor 9 og 7. Spor til innkjør C 103. |
|
| 9 | Buttspor | 25 | 25 | Verkstedspor. | ||||
| 10 | Buttspor | 514 | 466 | Hensettingsspor. | ||||
| 10 | Buttspor | 25 | 25 | Verkstedspor. | ||||
| 10 | Buttspor | 45 | 45 | Verkstedspor. | ||||
| 10 | Buttspor | 50 | 50 | Verkstedspor. | ||||
| 11 | Buttspor | 606 | 251 | |||||
| 11 | Buttspor | 50 | 50 | Verkstedspor. | ||||
| 11 | Buttspor | 177 | 149 | Disponeres av linjen. | ||||
| 11 | Togspor | 172 | ||||||
| 12 | Buttspor | 322 | 212 | |||||
| 12 | Buttspor | 147 | 120 | Disponeres av linjen. | ||||
| 13 | Buttspor | 328 | 300 | Disponeres av linjen. | ||||
| 13 | Buttspor | 370 | 270 | |||||
| 14 | Togspor | 1050 | 454 | DHB 454 | ||||
| 15 | Togspor | 848 | 256 | DHB 482 | ||||
| 16 | Togspor | 848 | 197 | DHB 390 | ||||
| 17 | Buttspor | 50 | 50 | Verkstedspor. | ||||
| 17 | Togspor | 891 | 345 | |||||
| 23 | Buttspor | 209 | 135 | 70 | 350/340 | 4,60 |
Sideplattform. Hensettingsspor. |
|
| 24 | Buttspor | 174 | 93 | Hensettingsspor. | ||||
| 26 | Buttspor | 580 | 486 | Hensettingsspor. | ||||
| 29 | Buttspor | 39 | ||||||
| 30 | Buttspor | 227 | 180 | |||||
| 31 | Buttspor | 257 | 138 | |||||
| 32 | Buttspor | 304 | 247 | |||||
| 33 | Buttspor | 304 | 247 | |||||
| 34 | Buttspor | 304 | 251 | |||||
| 35 | Buttspor | 301 | 239 | |||||
| 36 | Buttspor | 301 | 244 | |||||
| 37 | Buttspor | 116 | 53 | Hensettingsspor | ||||
| 43 | Buttspor | 371 | 318 | |||||
| 44 | Buttspor | 370 | 317 | |||||
| 47 | Buttspor | 301 | 252 | |||||
| 48 | Buttspor | 301 | 252 | |||||
| 54 | Buttspor | 24 | 24 | |||||
| 55 | Buttspor | 159 | 96 | Hensettingsspor. | ||||
| 81 | Buttspor | 272 | 209 | |||||
| 82 | Buttspor | 272 | 209 | |||||
| 83 | Buttspor | 228 | 165 | |||||
| 85 | Buttspor | 109 | 64 | |||||
| 120 | Buttspor | 282 | 282 | Verkstedspor. | ||||
| 121 | Buttspor | 546 | 546 | Verkstedspor. | ||||
| 140 | Øvrige spor | 69 | Sporsløyfe. | |||||
| 140 | Buttspor | 468 | 124 | Hensettingsspor. | ||||
| 150 | Buttspor | 232 | 188 | Hensettingsspor. | ||||
| 151 | Buttspor | 242 | 198 | Til travers. | ||||
| 152 | Buttspor | 270 | 198 | Til travers. | ||||
| 153 | Buttspor | 201 | 183 | Hensettingsspor. | ||||
| 154 | Buttspor | 173 | 155 | Hensettingsspor. | ||||
| 155 | Buttspor | 145 | 105 | Hensettingsspor. | ||||
| 157 | ||||||||
| 160 | Buttspor | 0 | Verkstedspor. | |||||
| 161 | Buttspor | 0 | Verkstedspor. | |||||
| 162 | Buttspor | 54 | 11 | Til travers. | ||||
| 163 | Buttspor | 233 | 193 | |||||
| 164 | Buttspor | 432 | Lokverkstedspor. | |||||
| 200 | Buttspor | 75 | 21 | Hensettingsspor. | ||||
| 201 | Øvrige spor | 59 | Sporsløyfe. | |||||
| 201 | Buttspor | 87 | 32 | Hensettingsspor. | ||||
| 202 | Buttspor | 125 | 55 | Hensettingsspor. | ||||
| 203 | Buttspor | 85 | 60 | Lokstall. | ||||
| 204 | Buttspor | 85 | 60 | Lokstall. | ||||
| 205 | Buttspor | 274 | Lokstall. | |||||
| 207 | Buttspor | 377 | Lokstall. | |||||
| 208 | Buttspor | 222 | Lokstall. | |||||
| 210 | Buttspor | 294 | Lokstall. | |||||
| 210 | Øvrige spor | 78 | Sporsløyfe. | |||||
| 156A | Buttspor | 145 | 106 | Diagnosestasjon. | ||||
| 156B | Buttspor | 58 | 58 | Verkstedspor. | ||||
| 211A | Buttspor | 217 | Hjuldreiespor. | |||||
Hensettingskapasitet
| Spor | Hensettings- lengde (m) |
Antall 110 m hensettingsplasser |
KL-anlegg | Serviceplattform | Sportilgang med bil | Toalettømming til stasjonært anlegg | Vannfylling | Togvarme | Tog-vaskemaskin | Dieselanlegg | Bremseluft | Merknader |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 451 | 4 | X | – | – | – | – | – | – | – | – |
Delvis KL. Ved Marienborg parallelt med spor 9. |
| 11 | 299 | 2 | – | X | – | – | X | X | – | – | – | |
| 12 | 299 | 2 | – | X | – | – | X | X | – | – | – | |
| 13 | 316 | 2 | – | X | – | – | X | X | – | – | – | |
| 24 | 93 | – | – | – | – | – | – | – | – | – | – |
Øst for spor 26/v361a. |
| 26 | 486 | 4 | X | X | X | – | X | X | – | – | – |
Ikke KL om togvarme er på. |
| 55 | 96 | – | – | – | – | – | – | – | – | – | – | "Langstikken". |
Togvarmeanlegg
| Anleggsnr. | Kapasitet (kVA) | Postnr. | Internnr. | Dekning (spornr.) | Spenning (V) | Frekvens (Hz) | Ytelse (A) |
|---|---|---|---|---|---|---|---|
| EL-TVA-000155 | 315 | ||||||
| EL-TVA-000156 | 2600 | ||||||
| EL-TVA-000157 | 2600 | ||||||
| EL-TVA-000158 | 200 | ||||||
| EL-TVA-000160 | 5200 |

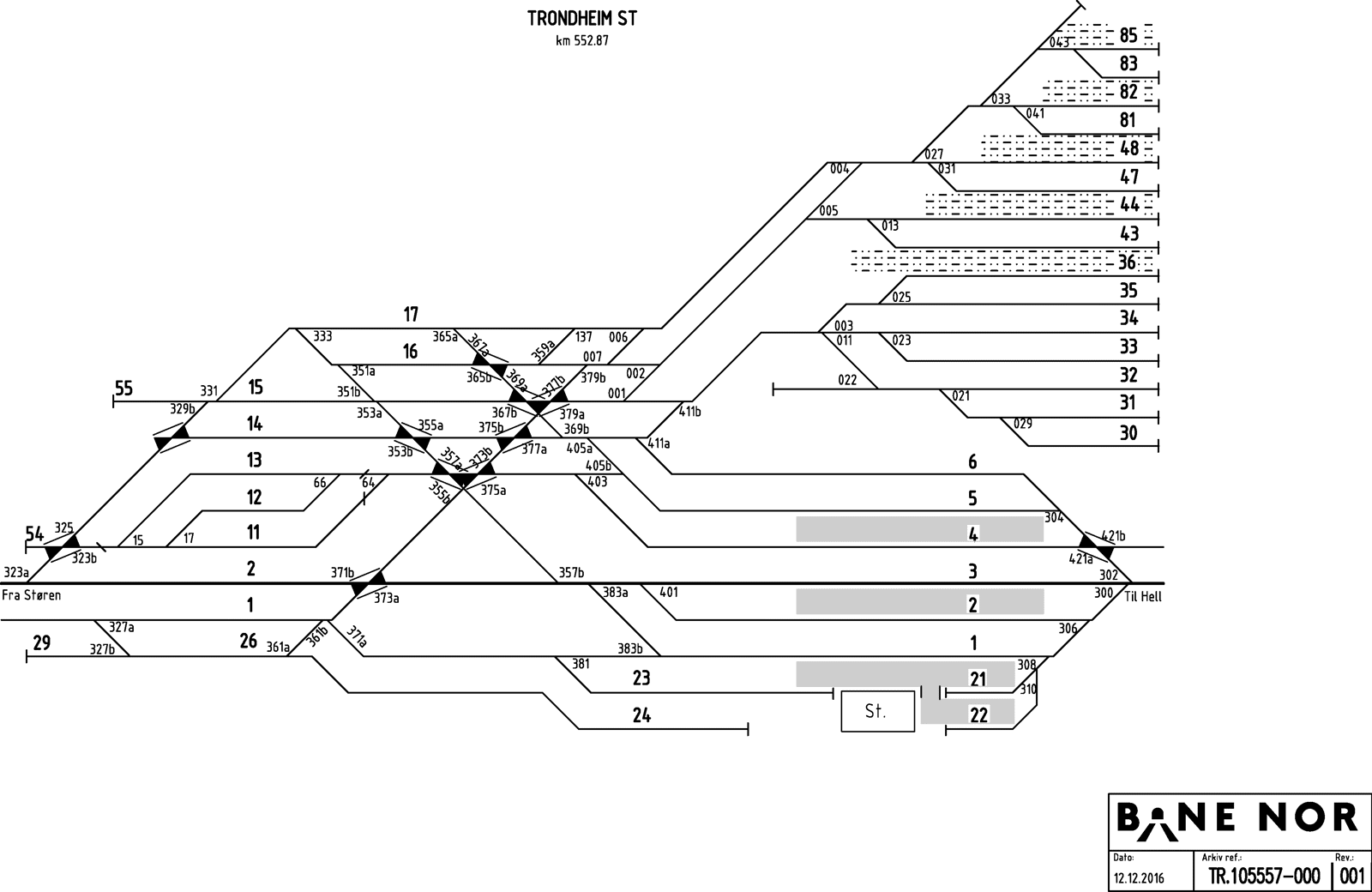

Sporplan
