Hønefoss stabling facility

Location

Section: Oslo S–Roa–Bergen, Bergensbanen.
Distance from Oslo: 89,57 km.

Address
3517 Hønefoss
Show directions:
Show walking directions You are leaving this website Show walking directions You are leaving this website
Location in map Google maps

Contact us

Track table

Track Platform Comments
Number Type Length (m) Passing loop length (m) Extended option (m) Length (m) Height (mm) Width (m)
1 Main track 1330 134   230 350 5 Side platform.
2 Train track   180         No platform.
3 Train track   200         No platform.
4 Stub track 220           No platform.
5 Main track 1780     314 700 10 Side platform.
5 Main track 1330 400   314 700 10 Side platform.
6 Train track   300   259 700 4 Island platform.
7 Train track   280         No platform.
8 Train track             No platform.
9 Train track             No platform.
1A Train track 115           No platform.
1B Train track 140           No platform.
11 Train track             No platform.
2A Train track 65           No platform.
2B Train track 228           No platform.
21 Train track 196           No platform.
23 Stub track 90           Loading ramp.
24 Stub track 60           Loading ramp.
25 Stub track             No platform.
26 Stub track             No platform.
28 Stub track 102           Loading ramp.
3A Train track 56           No platform.
43 Stub track 90           No platform.
44 Stub track 45           No platform.
45 Stub track 45           No platform.
46 Stub track 45           No platform.
47 Stub track 20           No platform.
48 Stub track 80           No platform.
49 Stub track 80           No platform.
50 Stub track 90           No platform.
51 Stub track 90           No platform.
52 Stub track 77           No platform.
6A Train track 350           No platform.
60 Train track 180           No platform.
61 Train track 114           No platform.
62 Train track 70           No platform.
63 Stub track 90           No platform.
64 Other tracks 373           No platform.

Stabling capacity

Track number Stabling length (m) Number of
train slots  (110 m)		 Overhead line Service platform Track access by car Toilet disposal Water filling Train heating Train wash Diesel fuelling Compressed air for brakes Comments
3 194 1 X – – – – – – – –
4 245 2 X – – – – – – – – The track has approximately 40 meters without overhead contact wire near the buffer stop.
8 260 2 X – – – – – – – –
9 260 2 X – – – – – – – –
10 220 2 X – – – – – – – –
60 180 1 X – – – – – – – –
61 114 1 – – – – – – – – –
62 70 – – – – – – – – – –
64 330 3 – – X – – – – – –
Vaskesporet 50 – – – – – – – – – – 1000 V available.

Train heating installations

Anleggsnr. Kapasitet (kVA) Postnr. Internnr. Dekning (spornr.) Spenning (V) Frekvens (Hz) Ytelse (A)
EL-TVA-000061 400

Track plan

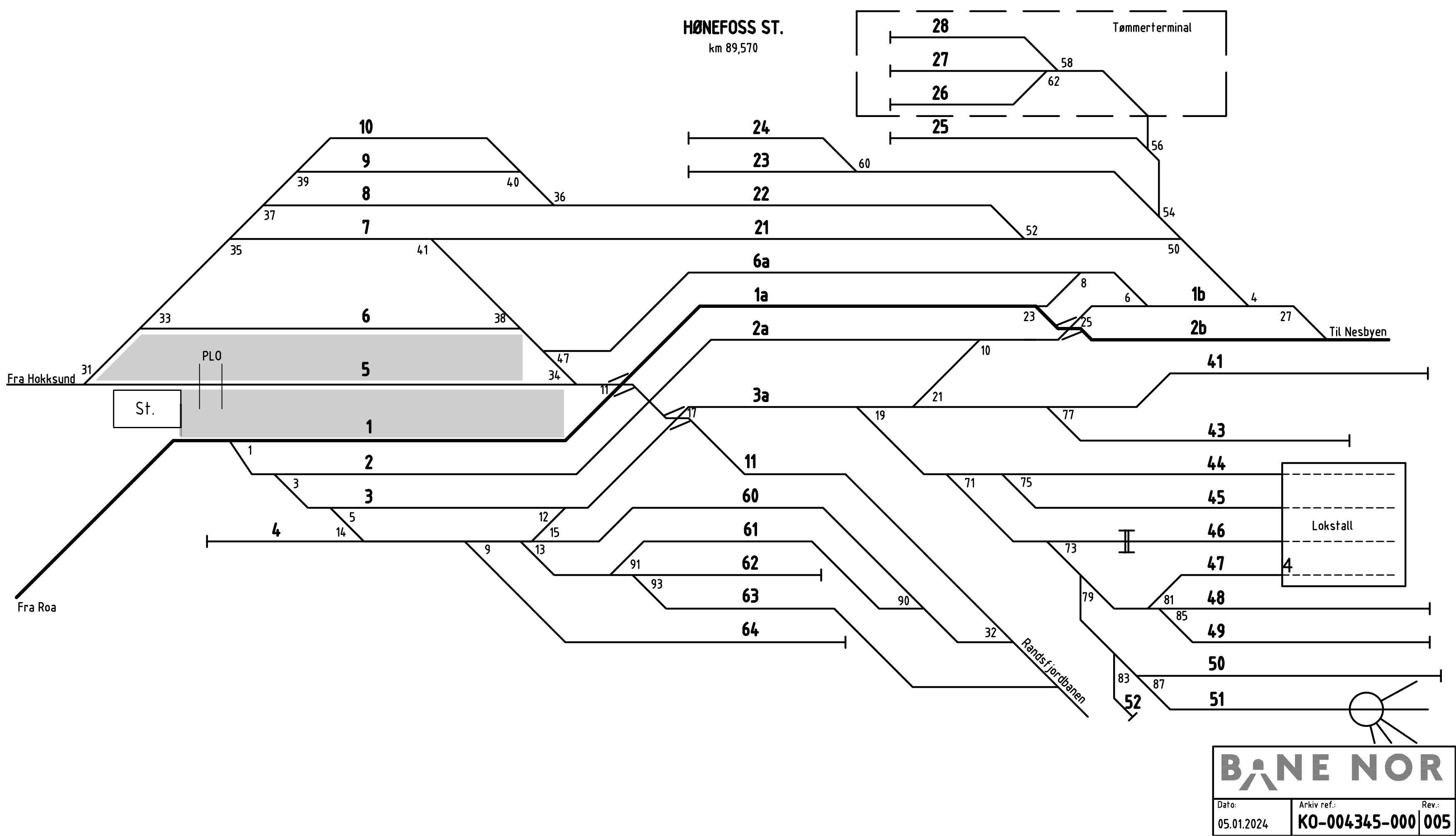

Track plan for Hønefoss station

Track plan for Hønefoss station. Bane NOR.
