Voss stabling facility

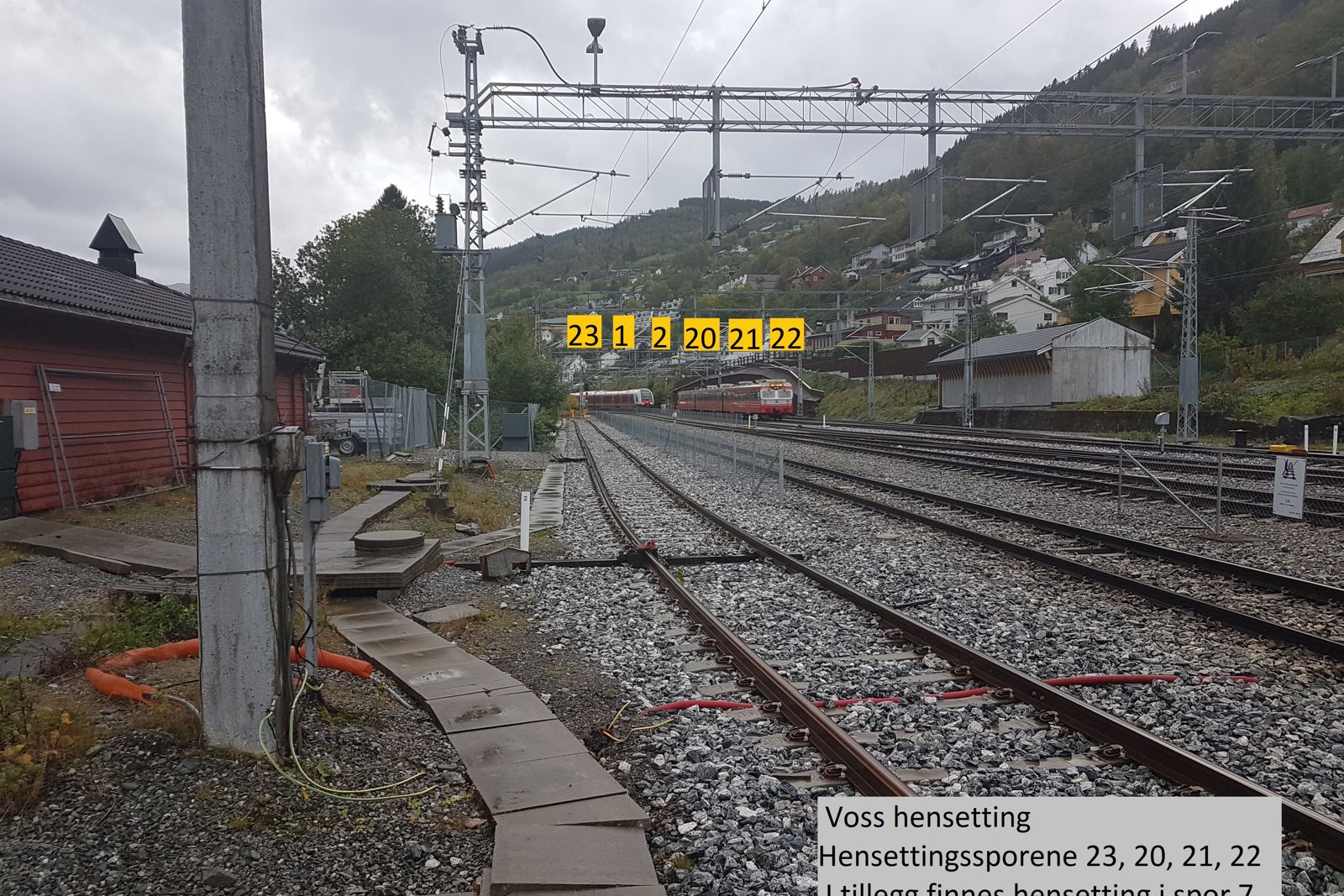

Photo of Voss Stabling Facility

Voss stabling facility Photo: Atle Einarson, Bane NOR

Jump to article

On this page:

Location

Section: Oslo–Roa–Bergen.
Distance from Oslo: 385,32 km.

Contact us

Track table

Track Platform Comments
No. Type Length (m) Passing loop length (m) Extended option (m) Length (m) Height (mm) Width (m)
1 Main track 1523 650   150 580 5 Side platform.
1 Main track 1523 650   250 700 8 Side platform.
2 Train track 782 650   250 700 3 Island platform.
3 Train track 187 157   200 700 3 Island platform.
7 Stub track 115 115
10 Stub track 70 35
15 Stub track 135 135
16 Other tracks 173 173
17
18 Other tracks 173 173
20 Stub track 381 381
21 Stub track 101 101
22 Stub track 76 76
23 Stub track 124 124

Stabling capacity

Track number Stabling length (m) Number of
train slots  (110 m)
Overhead line Service platform Track access by car Toilet disposal Water filling Train heating Train wash Diesel fuelling Compressed air for brakes Comments
1 654 5 X X X
2 245 2 X X
3 172 1 X X
7 115 1 X X
20 381 3 X X

Overhead line is 250 metres.

There are two train heating units interlocked with the overhead contact line (OCL), located approximately 115 metres along the track to ensure compatibility with 75 sets.

21 101 X X When the train heating system on Track 21 is in use, Track 22 is de-energised.
22 76 X When the train heating system on Track 21 is in use, Track 22 is de-energised.
23 124 1 X X Access is controlled via an S-lock system, a hand-thrown derail, and a manually operated turnout.

Train heating installations

Installation Location and Capacity
Installation no. Capacity (kVA) Stand no.  Local indentity no.  Serving track no.  Voltage (V) Frequency (Hz) Maximal continuous current (A)
EL-TVA-000145

Track table

Track table Voss Stabling Facility

Track plan for Voss Stabling Facility. Bane NOR

Download the track plan
