Trondheim stabling facility

Photo of Trondheim stabling facility
Photo: Jernbanedirektoratet
Jump to article

On this page:

Location

Section: Oslo S–Trondheim S, Dovrebanen.
Distance from Oslo: 552,85 km.

Address
Fosenkaia 1, 7010 Trondheim
Show directions:
Show walking directions You are leaving this website Show walking directions You are leaving this website
Location in map Google maps

Contact us

Jacob Matheson

Area Supervisor Service Facilities

(+47) 940 35 210 Starts a call

jacob.matheson@banenor.no Opens default email client

Track table

Track Platform Comments
No. Type Length (m) Passing loop length (m) Extended option (m) Length (m) Height (mm) Width (m)
1 Main track 0 360   115 760/741 3 Side platform.
1 Stub track 40 40         Maintenance track.
1 Stub track 44 44         Maintenance track.
1 Stub track 113 66         Stabling track.
1 Stub track 85 85         Maintenance track.
1 Train track 784 413
1 Other tracks 81           Turning loop.
2 Stub track 464
2 Train track 572 434   252 760/780 8,25 Island platform between tracks 2 and 3.
2 Main track 0 560
2 Stub track 40 40         Maintenance track.
2 Stub track 85 85         Maintenance track.
2 Stub track 44 44         Maintenance track.
3 Main track 750 439         DHB 439.
3 Stub track 85 85         Maintenance track.
3 Stub track 30 30         Maintenance track.
4 Stub track 30 30         Maintenance track.
4 Train track 587 416   252 760/780 7,80

Island platform between tracks 4 and 5.
4 Stub track 50 50         Maintenance track.
4 Stub track 85 85         Maintenance track.
5 Stub track 50 50         Maintenance track.
5 Stub track 45 45         Maintenance track.
5 Stub track 85 85         Maintenance track.
5 Train track 722 329   252 760/780 7,80 Island platform between tracks 4 and 5.
6 Stub track 50 50         Maintenance track.
6 Train track 672 464
6 Stub track 45 45         Maintenance track.
6 Stub track 25 25         Maintenance track.
7 Stub track 50 50         Maintenance track.
7 Stub track 25 25         Maintenance track.
7 Main track 833 718         DHB 678.
7 Stub track 60 60         Maintenance track.
7 Stub track 45 45         Maintenance track.
8 Stub track 60 60         Maintenance track
8 Train track 640 566
8 Stub track 50 50         Maintenance track.
8 Stub track 45 45         Maintenance track.
8 Stub track 25 25         Maintenance track.
9 Stub track 45 45         Maintenance track.
9 Stub track 50 50

Maintenance track.
9 Train track 1578 526   110 640/600 7,80

Island platform between tracks 9 and 7.

Track to entrance C 103.
9 Stub track 25 25         Maintenance track.
10 Stub track 514 466         Stabling track.
10 Stub track 25 25         Maintenance track.
10 Stub track 45 45         Maintenance track.
10 Stub track 50 50         Maintenance track.
11 Stub track 606 251
11 Stub track 50 50         Maintenance track.
11 Stub track 177 149         Assigned to the line crew.
11 Train track 172
12 Stub track 322 212
12 Stub track 147 120         Assigned to the line crew.
13 Stub track 328 300         Assigned to the line crew.
13 Stub track 370 270
14 Train track 1050 454         DHB 454.
15 Train track 848 256         DHB 482.
16 Train track 848 197         DHB 390.
17 Stub track 50 50         Maintenance track.
17 Train track 891 345
23 Stub track 209 135   70 350/340 4,60

Side platform.

Stabling track.
24 Stub track 174 93         Stabling track.
26 Stub track 580 486         Stabling track.
29 Stub track 39
30 Stub track 227 180
31 Stub track 257 138
32 Stub track 304 247
33 Stub track 304 247
34 Stub track 304 251
35 Stub track 301 239
36 Stub track 301 244
37 Stub track 116 53         Stabling track
43 Stub track 371 318
44 Stub track 370 317
47 Stub track 301 252
48 Stub track 301 252
54 Stub track 24 24
55 Stub track 159 96         Stabling track.
81 Stub track 272 209
82 Stub track 272 209
83 Stub track 228 165
85 Stub track 109 64
120 Stub track 282 282         Maintenance track.
121 Stub track 546 546         Maintenance track.
140 Other tracks 69           Turning loop.
140 Stub track 468 124         Stabling track.
150 Stub track 232 188         Stabling track.
151 Stub track 242 198         To the traverser.
152 Stub track 270 198         To the traverser.
153 Stub track 201 183         Stabling track.
154 Stub track 173 155         Stabling track.
155 Stub track 145 105         Stabling track.
157
160 Stub track 0           Maintenance track.
161 Stub track 0           Maintenance track.
162 Stub track 54 11         Til travers.
163 Stub track 233 193
164 Stub track 432           Engine maintenance track.
200 Stub track 75 21         Stabling track.
201 Other tracks 59           Turning loop.
201 Stub track 87 32         Stabling track.
202 Stub track 125 55         Stabling track.
203 Stub track 85 60         Engine shed.
204 Stub track 85 60         Engine shed.
205 Stub track 274           Engine shed.
207 Stub track 377           Engine shed.
208 Stub track 222           Engine shed.
210 Stub track 294           Engine shed.
210 Other tracks 78           Turning loop.
156A Stub track 145 106         Diagnosis station.
156B Stub track 58 58         Maintenance track.
211A Stub track 217           Wheel lathe track.

Stabling capacity

Spor Hensettings-
lengde (m)		 Antall 110 m
hensettingsplasser		 KL-anlegg Serviceplattform Sportilgang med bil Toalettømming til stasjonært anlegg Vannfylling Togvarme Tog-vaskemaskin Dieselanlegg Bremseluft Merknader
10 451 4 X – – – – – – – –

Partial overhead line.

By Marienborg, parallel to track 9.
11 299 2 – X – – X X – – –
12 299 2 – X – – X X – – –
13 316 2 – X – – X X – – –
24 93 – – – – – – – – – –

East of track 26/v361a.
26 486 4 X X X – X X – – –

No overhead line if train heating is turned on.
55 96 – – – – – – – – – – "Langstikken".

Train heating installations

Installation Location and Capacity
Installation no. Capacity (kVA) Stand no.  Local indentity no.  Serving track no.  Voltage (V) Frequency (Hz) Maximal continuous current (A)
EL-TVA-000155 315
EL-TVA-000156 2600
EL-TVA-000157 2600
EL-TVA-000158 200
EL-TVA-000160 5200

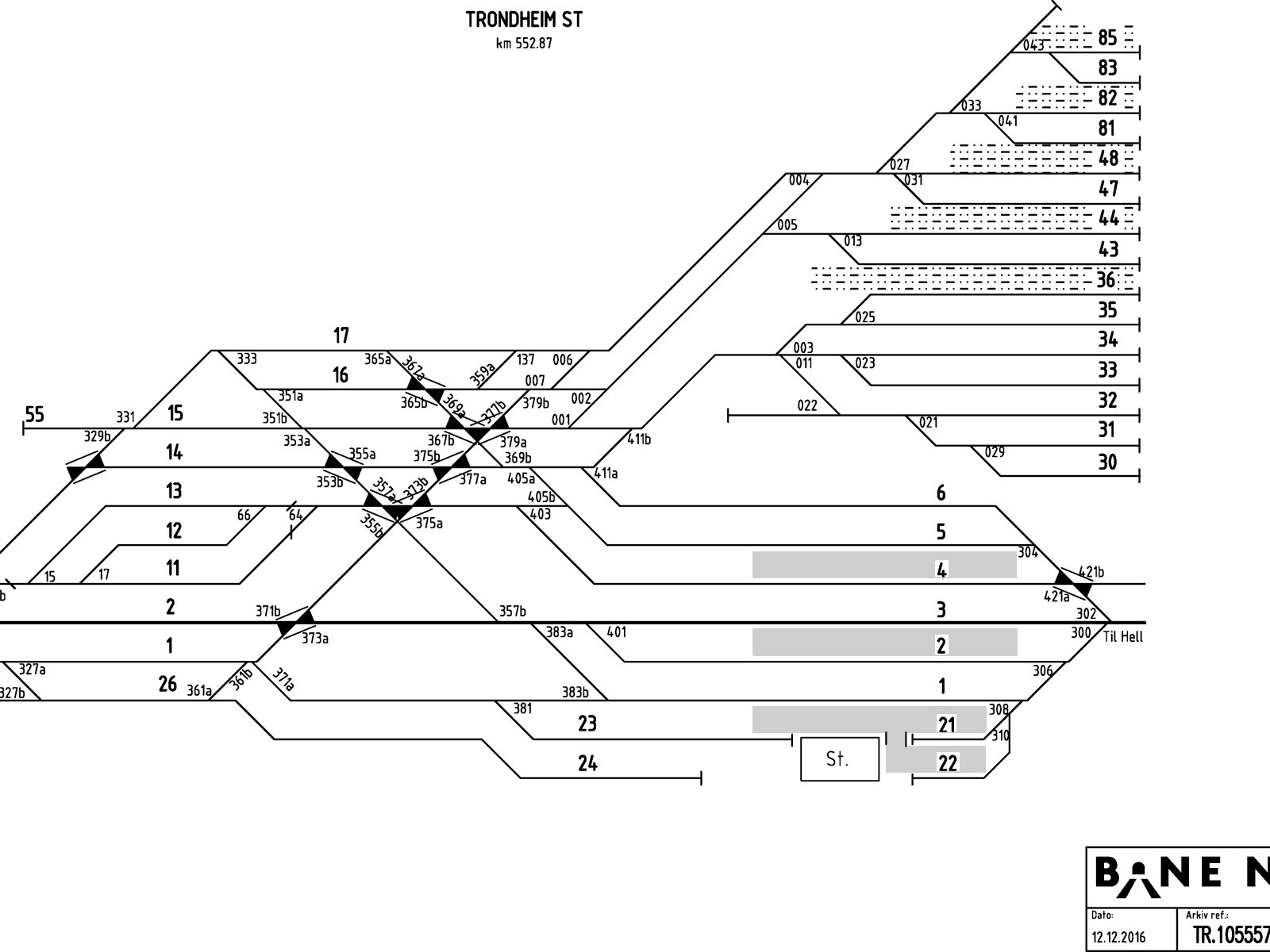

Track plan

Track table Trondheim Stabling Facility
Bane NOR

Download the track table
