Location
Section: Oslo S–Rakkestad, Østre linje.
Distance from Ski: 39,47 km.
Contact us
Elise Sivertsen
Track table
| Track | Platform | Comments | ||||||
|---|---|---|---|---|---|---|---|---|
| No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (mm) | Width (m) | |
| 1 | Main track | 649,40 | 502 | 220 | 760 | 3,50 | Side platform. | |
| 2 | Train track | 649,40 | 502 | |||||
| 3 | Train track | 443 | 284 | 228 | 760 | 3,50 | Side platform. | |
| 4 | Stub track | 187 | 115 | |||||
| 5 | Stub track | 40 | Track to locomotive stable. | |||||
Stabling capacity
| Track number | Stabling length (m) | Number of train slots (110 m) |
Overhead line | Service platform | Track access by car | Toilet disposal | Water filling | Train heating | Train wash | Diesel fuelling | Compressed air for brakes | Comments |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 242 | 2 | X | – | – | – | – | X | – | – | – | – |
| 3 | 284 | 2 | X | – | – | – | – | – | – | – | – | – |
| 4 | 130 | 1 | X | – | – | – | – | – | – | – | – | – |
Train heating installations
| Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
|---|---|---|---|---|---|---|---|
| EL-TVA-000107 | 2000 |

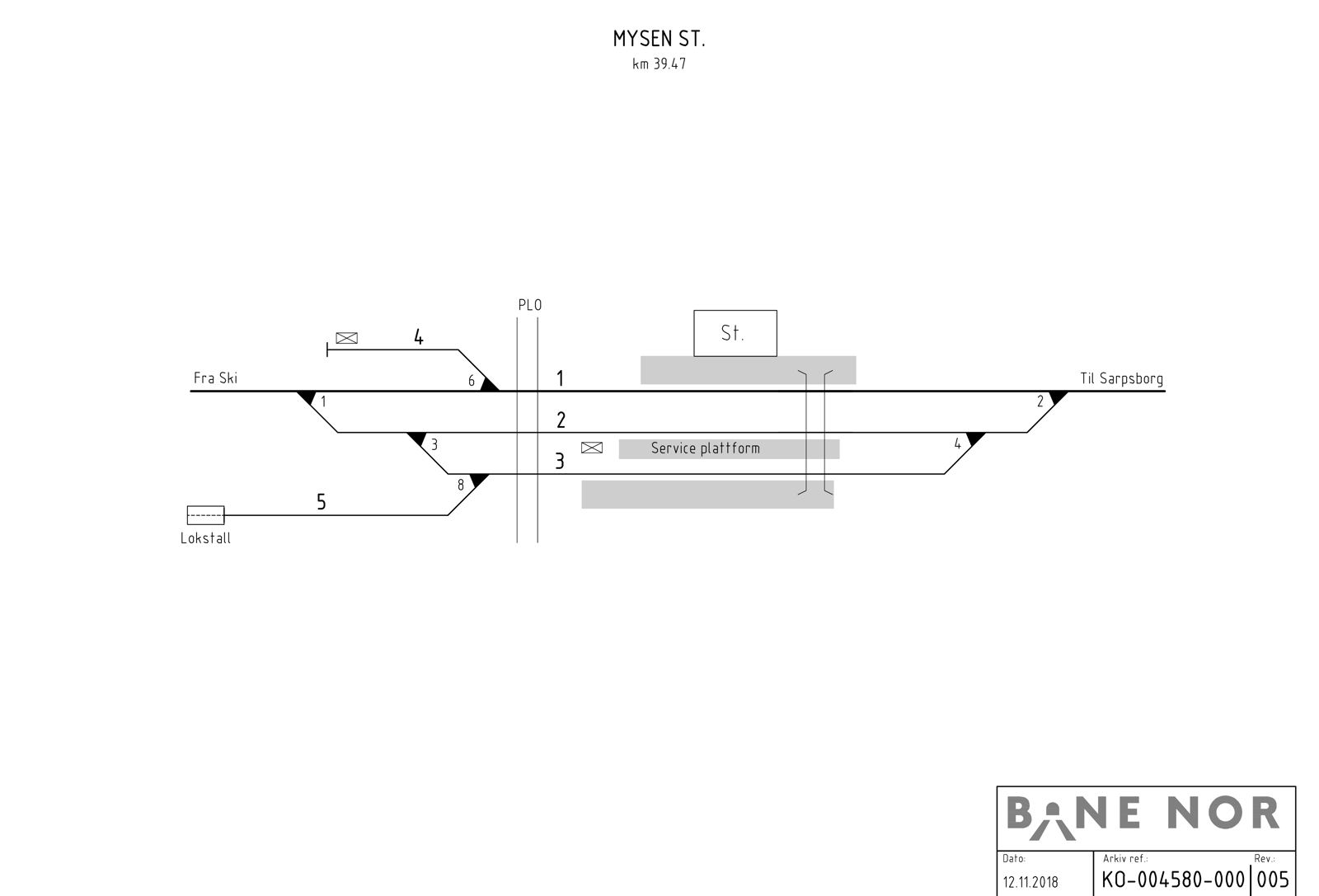

Track plan
Track plan for Mysen Stabling Facility. Bane NOR
