Location
Section: Oslo S–Dal, Hovedbanen.
Distance from Oslo: 20,95 km.
Contact us
Elise Sivertsen
Track table
| Track | Platform | Comments | ||||||
|---|---|---|---|---|---|---|---|---|
| No. | Type | Length (m) | Passing loop length (m) | Extended option (m) | Length (m) | Height (mm) | Width (m) | |
| 1 | Train track | 728 | 184 | |||||
| 1 | Main track | |||||||
| 2 | Main track | 350 | 700 | 10,30 |
Island platform between tracks 2 and 1. |
|||
| 3 | Main track | 867 | 285 | 350 | 700 | 9 |
Island platform between tracks 3 and 4. |
|
| 4 | Train track | 867 | 285 | |||||
| 5 | Main track | 399 | 334 | |||||
| 6 | Train track | 501 | 340 | 350 | 560 | 11,70 |
Island platform between tracks 6 and 7. |
|
| 7 | Train track | 628 | 367 | |||||
| 8 | Train track | 451 | 322 | 250 | 560 | 11 |
Island platform between tracks 8 and 9. |
|
| 9 | Train track | 408 | 300 | |||||
| 10 | Train track | 221 | 260 | |||||
| 11 | Train track | 306 | 181 | |||||
| 12 | Main track | 1515 | 1147 | |||||
| 13 | Train track | 1586 | 847 | |||||
| 14 | Main track | 1322 | 659 | |||||
| 15 | Train track | 1322 | 659 | |||||
| 16 | Stub track | Industrial track. | ||||||
| 17 | Stub track | 74 | Short stub track. | |||||
| 18 | Train track | |||||||
| 20 | Stub track | 72 | 350 | 2,24 |
Island platform. Stabling. |
|||
| 20 | Stub track | 107 | 350 | 2,24 |
Island platform. Stabling. |
|||
| 20 | Stub track | 107 | 350 | 2,24 |
Island platform. Stabling. |
|||
| 21 | Stub track | Stabling. | ||||||
| 22 | Stub track | 107 | 350 | 2,24 |
Island platform. Stabling. |
|||
| 22 | Stub track | 107 | 350 | 2,24 |
Island platform. Stabling. |
|||
| 23 | Stub track | Stabling. | ||||||
| 24 | Stub track | 95 | 350 | 2,24 |
Island platform. Stabling. |
|||
| 24 | Stub track | 107 | 350 | 2,24 |
Island platform. Stabling. |
|||
| 25 | Stub track | 80 | 600 | 4,34 |
Island platform. Stabling. |
|||
| 30 | Stub track | Stabling. | ||||||
| 31 | Stub track | Stabling. | ||||||
| 32 | Stub track | Stabling. | ||||||
| 33 | Stub track | Stabling. | ||||||
| 34 | Stub track | Stabling. | ||||||
| 35 | Stub track | Stabling. | ||||||
Stabling capacity
| Track number | Stabling length (m) | Number of train slots (110 m) |
Overhead line | Service platform | Track access by car | Toilet disposal | Water filling | Train heating | Train wash | Diesel fuelling | Compressed air for brakes | Comments |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 343 | 3 | X | X | X | – | – | X | – | – | – | |
| 21 | 245 | 2 | X | X | X | – | – | X | – | – | – | |
| 22 | 242 | 2 | X | X | X | – | – | X | – | – | – | |
| 23 | 243 | 2 | X | X | X | – | – | X | – | – | – | |
| 24 | 240 | 2 | X | X | X | – | – | X | – | – | – | |
| 25 | 241 | 2 | X | X | X | X | X | X | – | – | – |
Train heating installations
| Installation | Location and Capacity | ||||||
|---|---|---|---|---|---|---|---|
| Installation no. | Capacity (kVA) | Stand no. | Local indentity no. | Serving track no. | Voltage (V) | Frequency (Hz) | Maximal continuous current (A) |
| EL-TVA-000146 | 2000 | ||||||
| EL-TVA-000147 | 2000 | ||||||
| EL-TVA-000148 | 2000 | ||||||

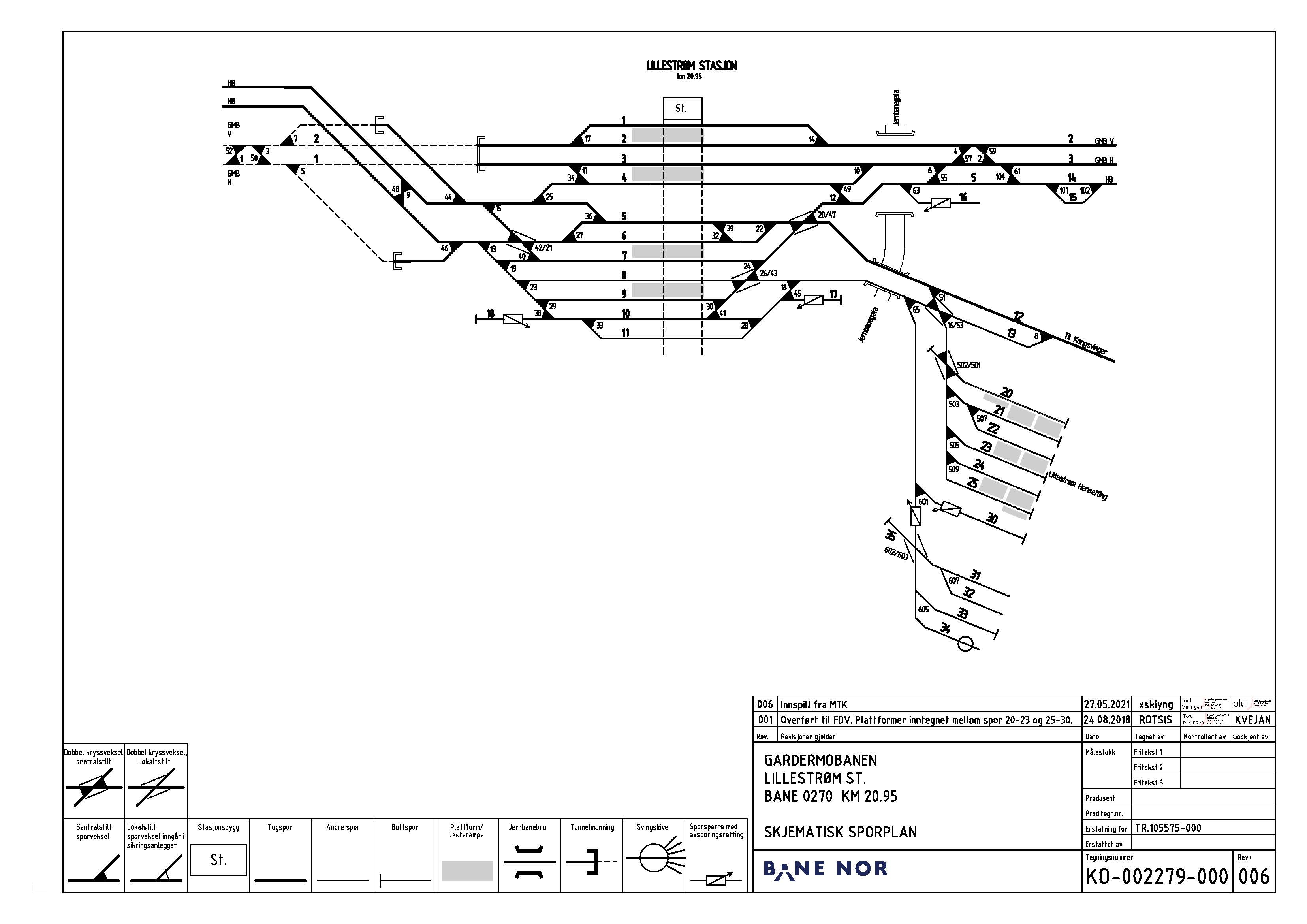

Track plan
