Kongsberg stabling facility

Photo of Kongsberg stabling facility
Photo: Jernbanedirektoratet
Jump to article

On this page:

Location

Section: Oslo S–Kristiansand–Stavanger S, Sørlandsbanen.
Distance from Oslo: 99,37 km.

Contact us

Track table

Track Platform Comments
Number Type Length (m) Passing loop length (m) Extended option (m) Length (m) Height (mm) Width (m)
1 Main track       30 350 1000

Service platform.

From entrance A to  railway switch 1.

1 Train track 592 278 427 243 600 9

Side platform.

New track 1.

2 Train track 536 221 370 246 600 10

Island platform between tracks 2 and 3.

New track 2.

3 Main track 592 245 357       New track 3.
4 Stub track 25           Loop track following railway switch 6.
5 Other tracks             Track to Numedalsbanen.
6 Other tracks             Track to locomotive  shed.
7 Other tracks
8 Other tracks       100 600 2

Service platform for tracks 8 and 9.

9 Other tracks
L1 Other tracks 15           Track between turntable and cell 1 is protected..
L2 Other tracks 15           Track between turntable and cell 2 is protected..
L3 Other tracks 15           Track between turntable and cell 3 is protected..
L4 Other tracks 15           Track between turntable and cell 4 is protected..
L5 Other tracks 15           Track between turntable and cell 5 is protected..
L6 Other tracks 15           Track between turntable and cell 6-fredet
10 Other tracks       130 600 2

Service platform for tracks 10 and 11.

11 Other tracks
12 Other tracks 275,60     210 350 2900 Service platform.
13 Other tracks 241,70
14 Other tracks 240,10     210 350 2900 Service platform.
15 Other tracks

Stabling capacity

Track number Stabling length (m) Number of
train slots  (110 m)
Overhead line Service platform Track access by car Toilet disposal Water filling Train heating Train wash Diesel fuelling Compressed air for brakes Comments
8 120 1 X X
9 120 1 X X
10 134 1 X X
11 134 1 X X
15 116 1 X X X X
12 225 2 X X X X
13 225 2 X X X X
14 225 2 X X X X

Train heating installations

Installation Location and Capacity
Installation no. Capacity (kVA) Stand no.  Local indentity no.  Serving track no.  Voltage (V) Frequency (Hz) Maximal continuous current (A)
EL-TVA-000085 2500

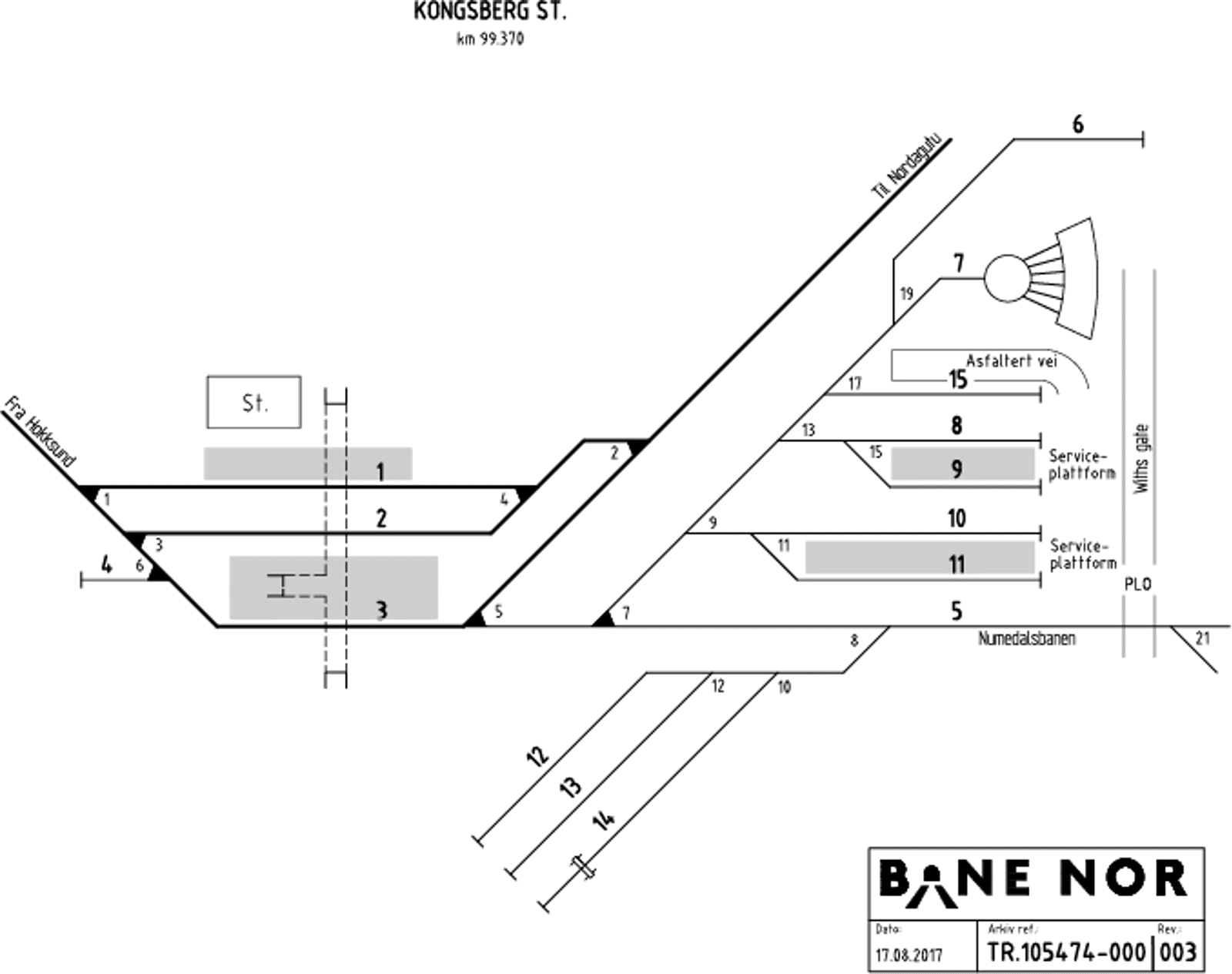

Track plan

Track plan Kongsberg Stabling Facility
Bane NOR

Download the track plan
